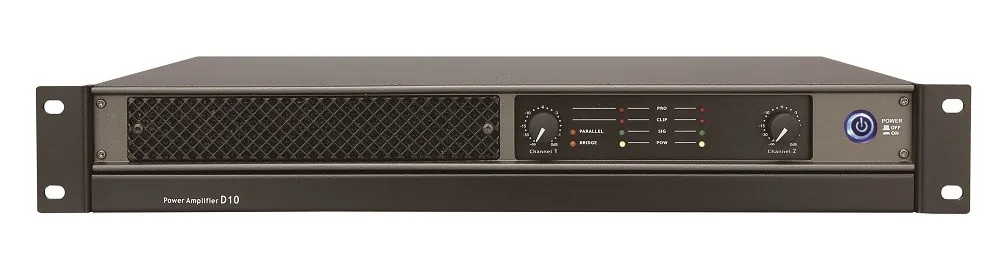

2 channels sound system power amplifier D10 with 1000w 8ohm class td 1.5u competitive price stable and durable

FOB Reference Price:Get Latest Price
$230.00 - $250.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Spirit
Model Number:
D10
Rated power(8ohms):
1000Wx2
Rated Power(4ohms):
1500Wx2
Rated Power(Bridge 8ohms):
3000W
Rated Power(2ohms):
2000x2
Frequency Response:
20Hz-20kHz,+0/-0.5dB
THD+N:
<0.2%
SNR Rate:
-95dB
Size(LxWxH)mm:
438X368X66
Weight:
9KG
S/N Rate:
-95dB
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box package
Port
Guangzhou,China
Lead Time :
2 weeks
Product Description

2 channels sound system power amplifier D10 with 1000w 8ohm class td 1.5u competitive price stable and durable


The power is tested under the condition of 40ms burst,1KHz sine wave and 1%THD;

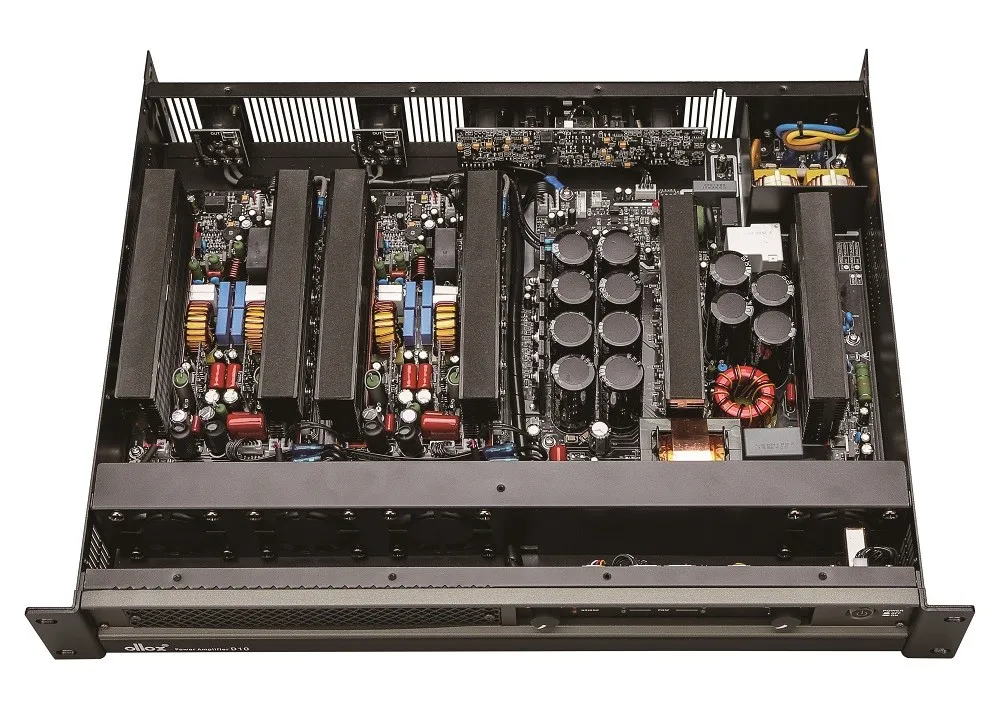

Using the latest generation of Class D module,so that the D series has become the most cost-effective power amplifier and favored by professional audio;


The weight is less than 9 kg,the effective reduction of transport cost will become the pursuit of light weight of low cost engineering preferred.


Feature:
1.Class TD power modules

2.Super power high efficient and stable switching power supply

3.XLR input and signal link connector

4.Speak on NL4 output connectors

5.Routing mode selector on the back panel(stereo/bridge/parallel)

6.The whole machine is equipped with a high speed protection of intelligent all direction electronic circuit.

7.Channel independent protection and clip warning indicators on the front panel

8.1U-1.5U low unit weight

9.Fresh and sweet sound characteristics


Specification
Model
D10
8ΩStereo
2x1000w

4ΩStereo

2x1500w

2ΩStereo

2x2000w

8ΩBridge

3000w

4ΩBridge

4000w

Frequency Response

20Hz-20KHz,+/-0.5dB

THD+N

0.20%

S/N Rate

-95dB

Daming Factor

>700

Input Sensitivity

1.0V,1.4V,2.0V

Input Impedance

20KΩ/10KΩ(Bal/Unbal)

Cooling

Air flow from front to rear

Protect

Short circuit,open circuit,thermal,RF protection.On/off muting,DC fault shutdown,active inrush limiting

Dimensions

438x368x66mm(1.5u)

Net Weight

9kg



Certifications
Projects
Exhibitions
Workshop
Company Profile

LET THE WORLD KNOWS OUR "SPIRIT"

Established in1993, Guangzhou Power and Grace Electronic Equipment Co., Ltd ( SPIRIT ),as the leading pro audio equipment manufacturers for LINE ARRAY SYSTEM,SPEAKERS , MIXING CONSOLE, PROFESSIONAL POWER AMPLIFIER.Located in Guangzhou,China with 8000 square meters.


 Year after year's hard effort on R&D,engineering and sales,our  products had been widely  used  in performance ,club,KARAOKE,music hall and all places that need audio solution. Still,we will keep on providing excellent models and services to any customers in need, we always aim that someday the world  knows about our "SPIRIT".
